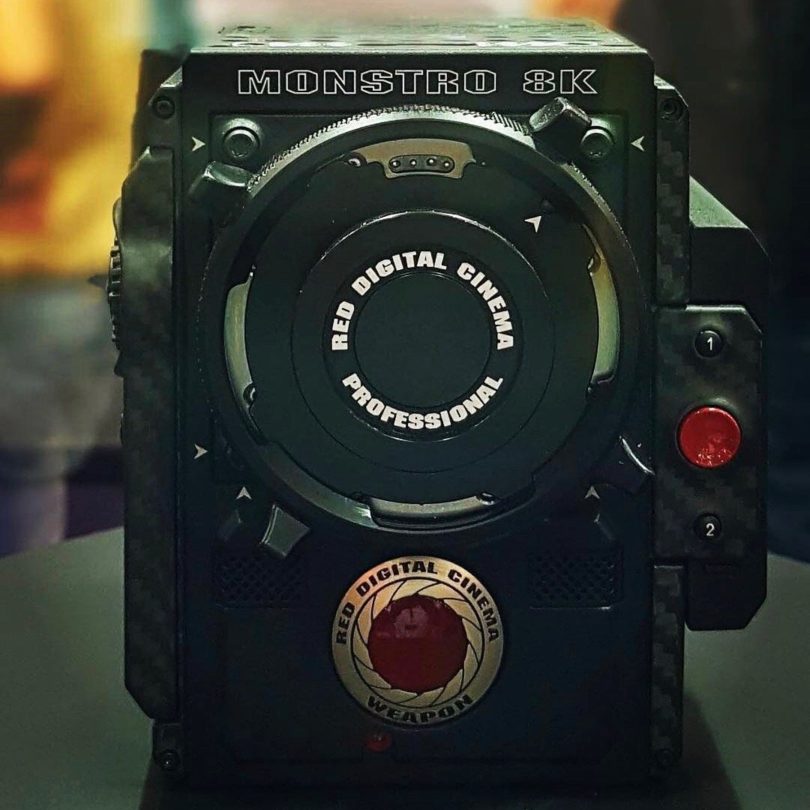

Bundling high performance raw video recording in a compact camera body, the RED DIGITAL CINEMA DSMC2 BRAIN with MONSTRO 8K VV Sensor is designed to be built up the way you want, to tell your story in almost any way possible. Since the DSMC2 form factor is standard, accessories from RED and other manufacturers can be easily attached to accessorize your camera. The MONSTRO 8K full frame sensor boasts up to 17 stops of dynamic range, and can record the full image circle of full-frame 35mm lenses. You can also use Super 35mm lenses with a windowed capture area for high-frame rate recording. Sitting in front of the full-frame sensor is an interchangeable PL mount. This way you can use industry-standard cinema lenses right out of the box, or exchange the mount to use alternative photo and video lenses.
REDCODE RAW is the format of choice for DSMC2 cameras. RED’s versatile raw codec uses wavelet compression to reduce data rates while maintaining a visually lossless image rendering. This efficient codec can be edited on many available NLE software programs without transcoding, though if you prefer a proxy workflow, ProRes or DNx files can be recorded simultaneously to the MINI-MAG media. Lowering the recording resolution allows the sensor to capture higher frame rates for dramatic slow-motion footage. The DSMC2 cameras use sensor windowing to record slow motion in lower resolutions, requiring wider or smaller-format lenses to compensate for the additional crop.
8K MONSTRO VV Sensor
RED’s MONSTRO 8K sensor can take advantage of full-frame 35mm lenses, and then some, with its 40.96 x 21.6mm surface area. Despite its size, the MONSTRO can be driven up to 60 fps at full resolution. Higher frame rates, up to 300 fps, can be made available by windowing the sensor to lower resolutions. RED measured the MONSTRO sensor as having 17 stops of dynamic range, able to represent both deep shadows and bright highlights in the same frame.
